Collaborative Study on Weight Optimisation of Lubricant Bottles under
Stacking Condition using Finite Element Analysis and Machine Learning

Combination of parison section thickness
Combination t1-10 t11-20 t21-30 t31-40 t41-50 t51-60 t61-70 t71-80 t81-90 t91-
No. 100
mm Mm mm mm Mm mm mm mm mm Mm
1.17- 1.17- 1.17- 1.17-
C6 1.17 1.17 1.17 1.17 1.17 1.17
0.60 0.60 0.60 0.60
1.17- 1.17- 1.17-
C7 1.17 1.17 1.17 1.17 1.17 1.17 1.17
0.60 0.60 0.60
1.17 1.17 1.17 1.17- 1.17- 1.17- 1.17- 1.17- 1.17- 1.17-
C8
0.60 0.60 0.60 0.60 0.60 0.60 0.60

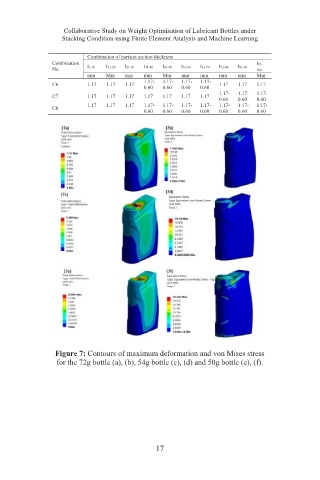

Figure 7: Contours of maximum deformation and von Mises stress
for the 72g bottle (a), (b), 54g bottle (c), (d) and 50g bottle (e), (f).

17
